BULL

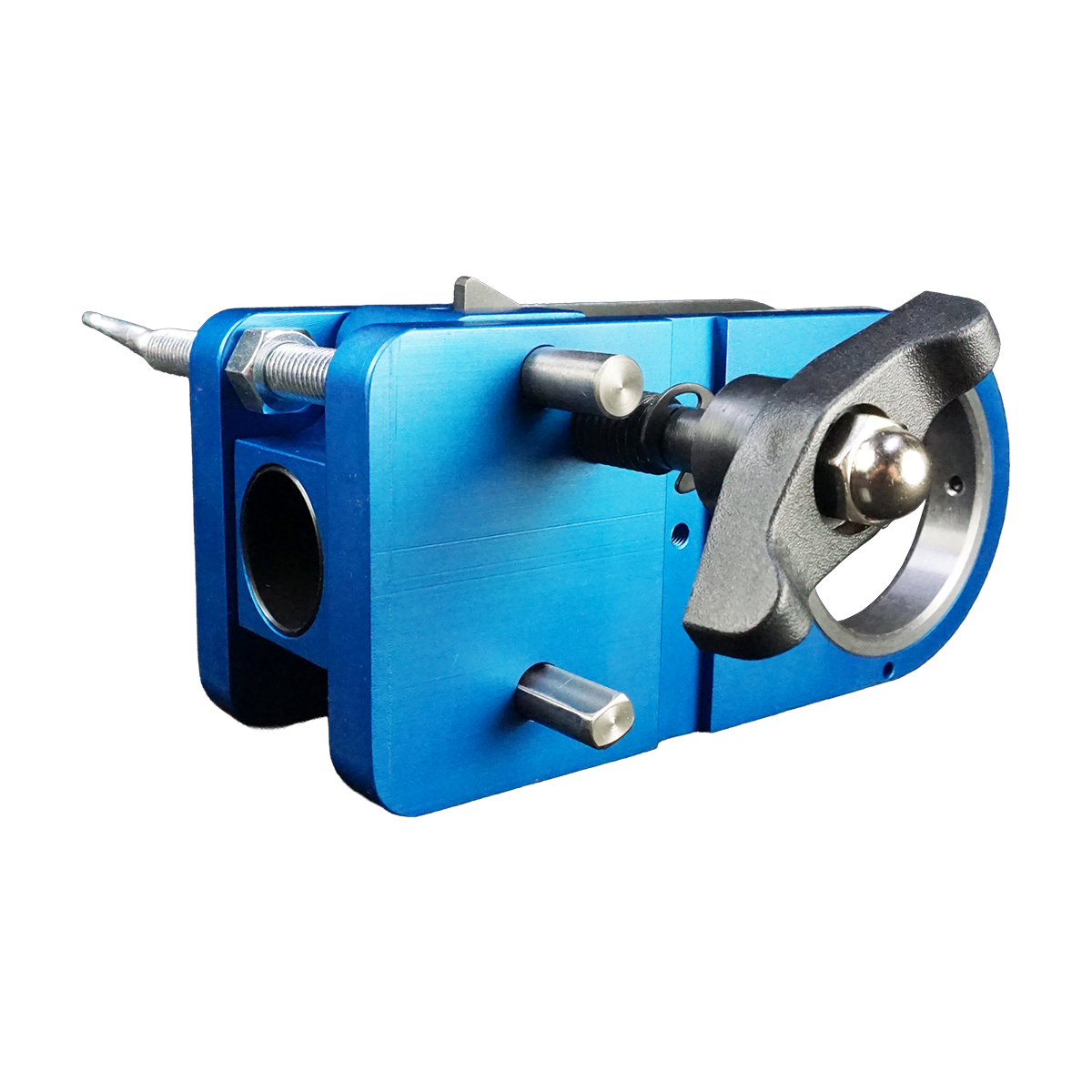

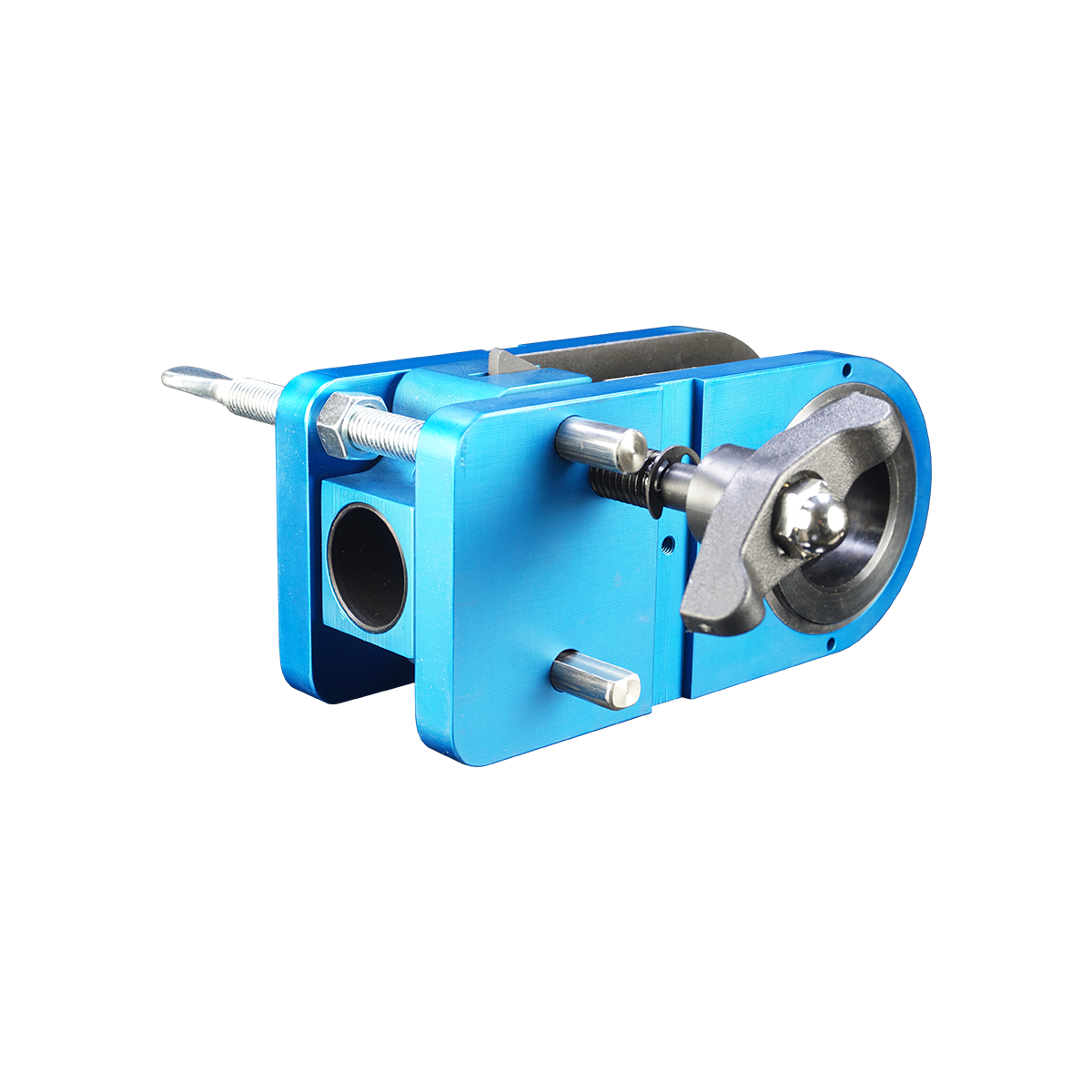

Bullseye Installation Jig

This mortise jig will assist installers with drilling wood or metal doors. The tool is completely self-contained besides a 3/32" Allen wrench to change bore sizes. Check out these great features:

• 2-1/8" Face Bore (Standard)
• 2-3/8" or 2-3/4" Backset (built in tabs change from one to the other instantly!)
• 1/8" pilot holes at 12 & 6 o'clock positions for levers using 2-3/4" spacing for through bolts
• Optional reducer bushings available for 1-1/2"
• Optional interconnecting straps to set up proper spacing for a second Bullseye for interconnected locks
• Works with door thicknesses from 1-1/4" to 2-3/4"
